W2IHY Technologies specializes in affordable audio technology for amateur radio applications. Our products are built to be used in transmitting environments where RFI and less-than-perfect ground systems can compromise the performance of audio equipment. Extensive RF Isolation and Audio Isolation solutions are designed into all W2IHY products.

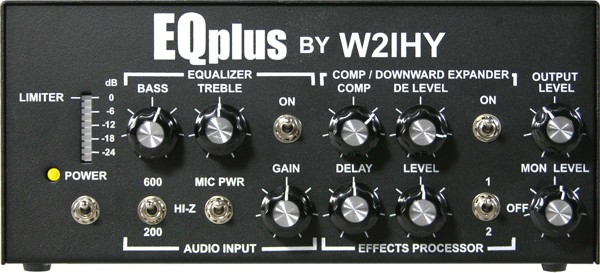

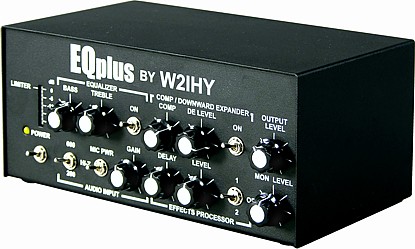

The legendary W2IHY 8-Band and Dual-Band Audio Equalizers/Noise Gates are in use worldwide. EQplus, our newest product, is a sophisticated audio processing chain for high-end transmit audio. iBox is a variable audio attenuator and interface box ideal for audio chains and interface to radio equipment & computers. We also provide high-quality, custom-made cables for all of your audio needs.

Technical Support and Customer Service are readily available via telephone and email. Our goal is 100% Customer Satisfaction. All products are manufactured in the USA. Free Technical Support and 3-Year Warranty. 30 Day No Questions Asked Money Back Guarantee on products purchased direct from W2IHY Technologies. ....

And I can just say: Yes, Yes and again Yes.

Julius, W2IHY do a great support in any stage of the business. He answers the questions before you orde, he answer “during” the shipment time, gives you a call - even over continents - and give any technical support you need.

I recommend to listen the audio samples at Julius webpage!

I do have the EQplus running with my FT 1000 MK5 for HF DX.

One of the most interesting things is the setup of several parametres for different combinations ( Transceiver / Audio-Equipment / Microphone)

Please feel free to help us all and send me your approved and tested parameters

The FT 2000 / W2IHY connection using the rear connector

For many years Amateur Radio Operators asked the question, "how's my
signal"? Many are now asking, "how's my audio"?here are the recommendations from John Occhipinti, K3UR
The Setup Specialist, W2IHY Audio Gear

EQ Plus:
Bass 2 o'clock
Treble 1 o'clock
Compressor 12 o'clock
DE Level 2 o'clock
Impedence 200 (down position)
Effects:
Delay Fully Counterclockwise
Effects Level 10 o'clock
Effects Switch Up

If using the W2IHY 8 Band EQ and the EQ Plus, it is highly
recommended to also use the W2IHY I-Box (pad down transformer).
These are the basic settings:
8 Band EQ:
50 +14
100 +6
200 -4
400 -4
800 -4
1600 +10
2400 +12
3200 +14
