DM0ZIR.... the Dutch Border Repeater System

DM0ZIR is the valid callsign for my own Mixed-Mode FMn and DMR repeater system. The station is located at my home station in Straelen

The intention is to cover the area around my home and some parts of the region close to the Dutch border, of course on both sides of the border

But what ever... feel free to use DM0ZIR and enjoy it!

Frequency: 439,3625 MHz duplex

Repeatershift: - 7,6

CTCSS 67 Hz in FMn

rebroadcast of CTCSS 67 in FMn Mode

no 1750Hz access tone

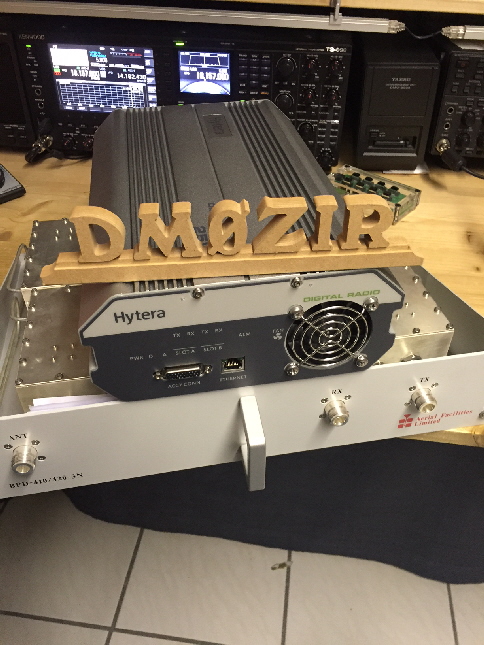

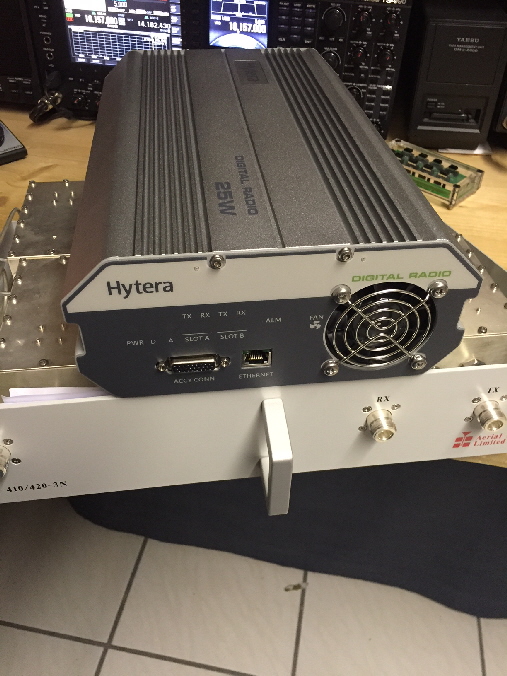

Technology : Hytera 625 Repaeter system

supplied by Difona Communications GmbH

Antenna: Diamond X300, 25 m Coax

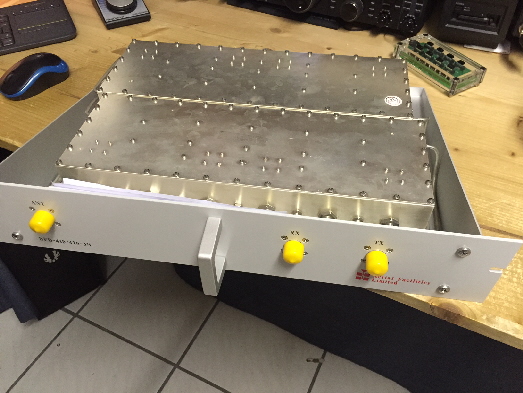

Highend Duplex Filter

Network connection, direct to V-DSL

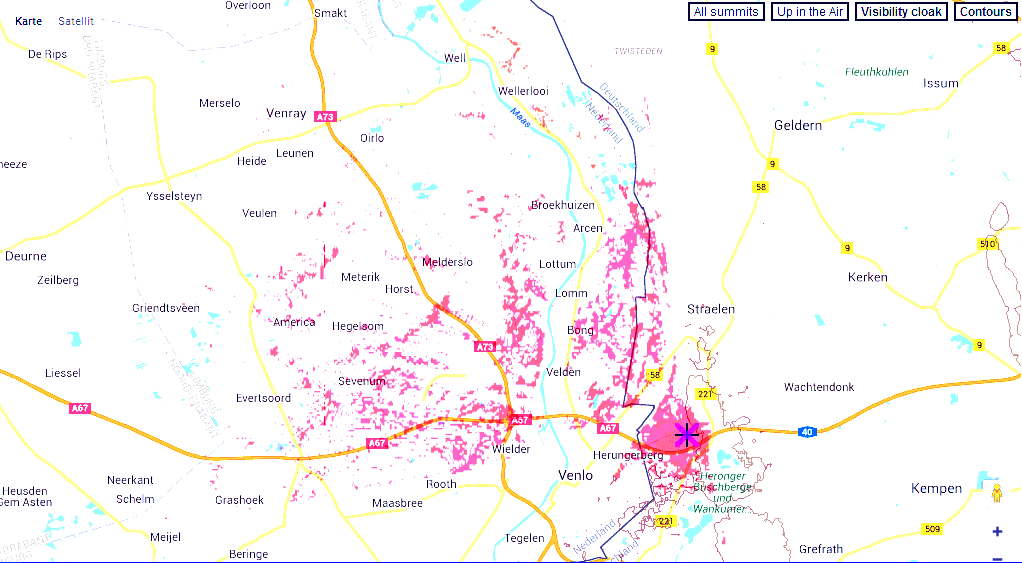

Here you can see the possible coverage and possible range of the system. The pink colour showes the optical connection, meanas from a pink spot you can see... in theory... the repeater antenna. So it should also work for radio waves

(many thanks to DG3EAJ for providing the picture)
